Technical Services
Motor Drive, Vibration & Insulation Assessment
The backbone of your production line. We diagnose Drive-Motor-Load health through integrated Electrical, Mechanical, and Insulation analysis to prevent unplanned downtime.
The "Backbone" Under Stress
In industrial plants, motors, drive systems, and rotating loads (pumps, fans, compressors, conveyors…) are the “backbone” of the production line. When signs like VFD trips, motor overheating, increased vibration, abnormal noise, repeated bearing failure, or efficiency drops appear, treating them based on “intuition” is often costly and ineffective.
Integrated Approach: Electrical – Mechanical – Insulation
Many failures do not stem from a single cause. For example, poor power quality causes heat, heat degrades insulation; or mechanical vibration damages bearings, causing current spikes and winding overheating. Anh Minh approaches with a holistic measurement strategy to quickly isolate the root cause: Source – Drive – Motor – Cable – Load.
Cement & Mining
F&B
Chemicals
Water Treatment
Technical Scope
What We Analyze
1. Power Supply Assessment
Evaluating voltage stability, phase unbalance, and harmonic distortion affecting the drive system.
- Impact on panels, cables, transformers.
- Detecting electrical events causing drive trips.
2. Drive & Motor Performance
Analyzing stability under different load modes and identifying abnormalities during ramp-up/down.
- Parameters related to settings, motor cables.
- Detecting winding degradation or load issues.

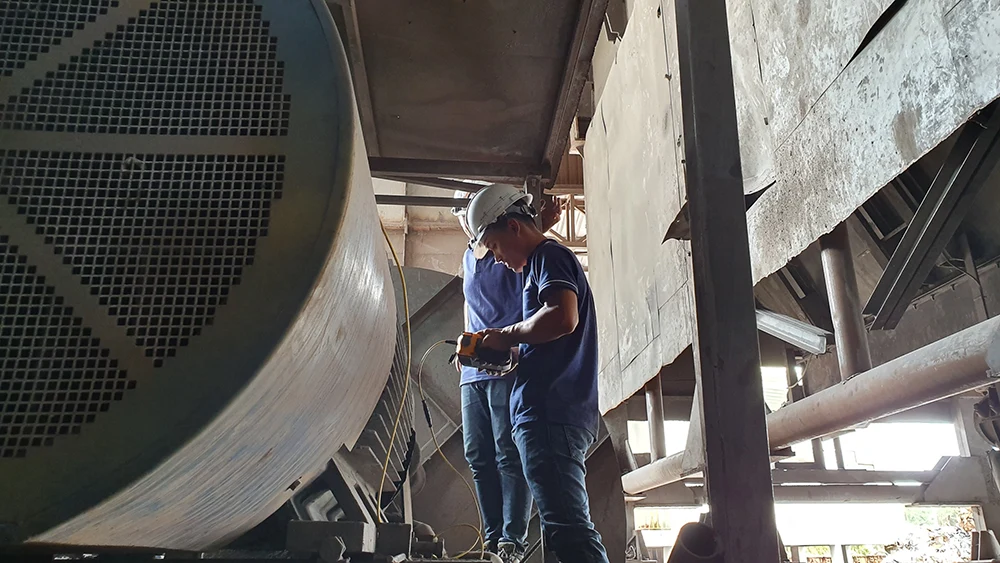

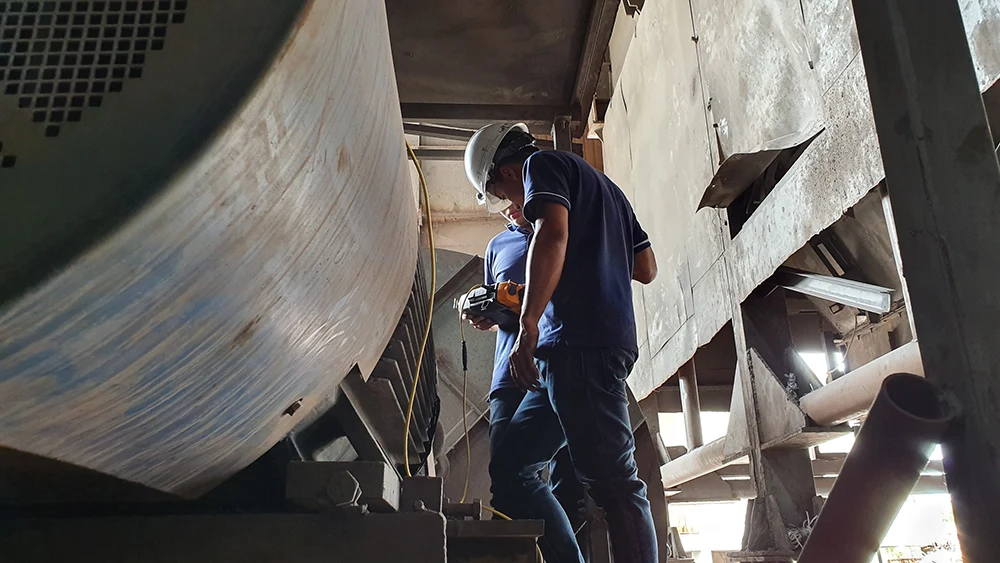

3. Vibration & Mechanical Health
Overall vibration and spectrum analysis at bearings, motor casing, and load.
- Identify: Imbalance, misalignment, looseness.
- Bearing faults, resonance, coupling issues.

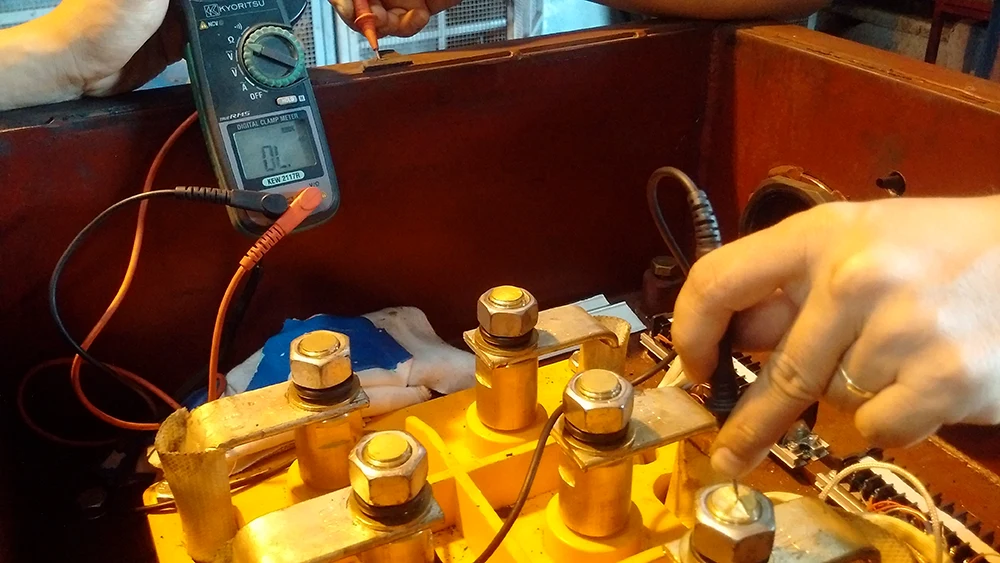

4. Insulation Resistance Test (IR)
Critical step to assess winding and cable health, especially for overheating motors or wet environments.
- IR Test (MΩ/GΩ) with appropriate voltage levels.
- Timed Test & PI/DAR index for aging/moisture detection.
Service Workflow
Site Survey
Review symptoms, failure history, drive-load configuration, and environmental conditions.
Measurement Plan
Select measurement points to capture the exact "moment of failure" during production shifts.
Data Recording
Electrical parameters, drive status, vibration/noise data, and insulation testing (when safe isolation is possible).
Root Cause Analysis (RCA)
Isolate causes: electrical / control / mechanical / insulation / operational.
Report & Recommend
Prioritized action plan (short-term / long-term). Optional post-improvement verification.
What You Get?
Quick Isolation
Pinpoint source: Source / Drive / Motor / Mech / Insulation.
Reduced Downtime
Minimize unplanned stops and recurring failures.
Targeted Maintenance
Right action at right time: Align, Bearing replacement, Clean & Dry.
Clear Reporting
Data for coordination between Maintenance, Production, and Safety teams.
Don't Guess. Measure.
If your plant is facing: abnormal drive trips, hot motors, increased vibration/noise, repeated bearing failures, or random short circuits, Anh Minh is ready to survey and deploy measurement under real operating conditions.
